Name |
Erbium(III) Oxide |
Molecular Formula |
Er2O3 |
Molecular Weight |
382.56 |
Density |
8.64 g/cm3 |
Melting Point |
2344 °C |
Boiling Point |
3290 °C |
Solubility |
Insoluble in water |

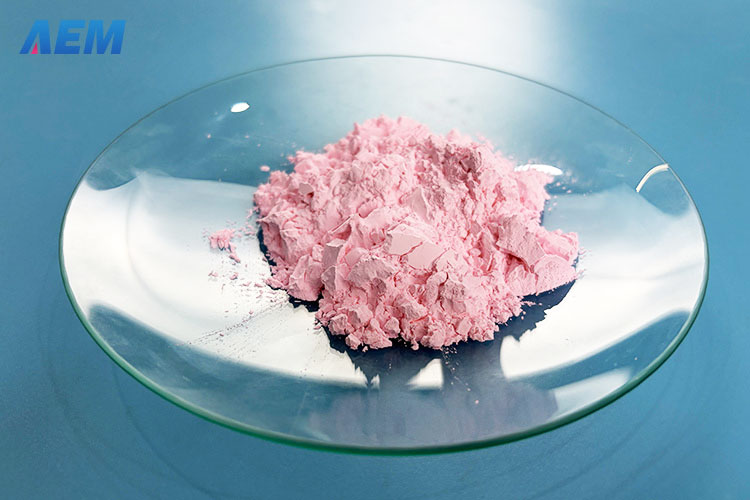

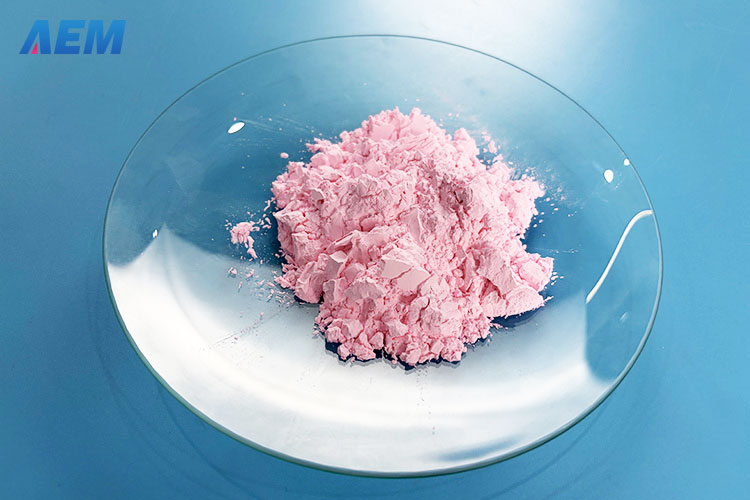

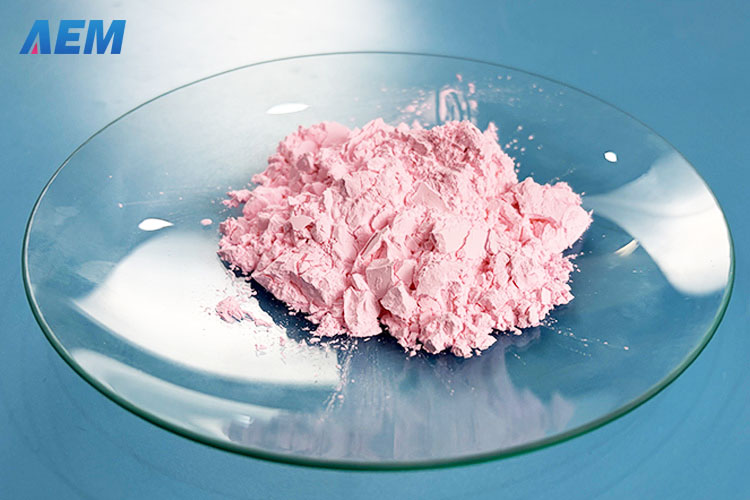

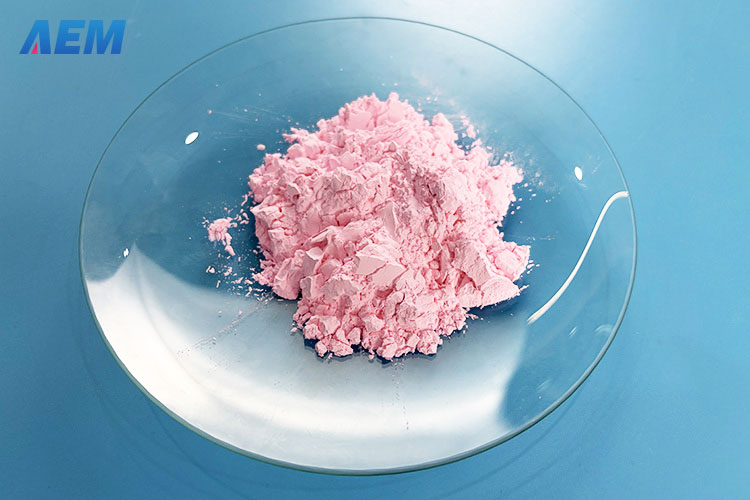

Appearance |
Pink powder |
CAS Number |
12061-16-4 |
Storage |
Store in a dry place |
Erbium Oxide Powder Introduction
Erbium oxide is a pink powder in appearance. It is insoluble in water but soluble in acid. Erbium oxide can be used as control material of nuclear reactor, additive material of yttrium iron garnet, rose red colorant of glass, infrared absorption, and special luminescent glass.
Erbium Oxide Powder Applications
Erbium oxide can be used as an additive of yttrium iron garnet and control material of nuclear reactor. It can also be used to make special luminescent glass and infrared absorbing glass. It can also be used as a glass colorant to make rose-red glass color.
Chemical Composition of Erbium Oxide Powder
Main Compositions ≥ % |
Analysis Instrument |
Specifications |
Er2O3-1 |
Er2O3-2 |
|
ICP Spectrometer |
TREO(wt%) |
99 |
99 |
Er2O3/TREO |
99.5 |
99.95 |
Rare Earth Impurities (≤ %) |
Spec/Item/Content |
La2O3/TREO |
CeO2/TREO |
Pr6O11/TREO |
Nd2O3/TREO |
Sm2O3/TREO |
Eu2O3/TREO |
Gd2O3/TREO |
Tb4O7/TREO |
Er2O3-1 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
Er2O3-2 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
Spec/Item/Content |
Dy2O3/TREO |
Ho2O3/TREO |
Tm2O3/TREO |
Tb2O3/TREO |
Lu2O3/TREO |
Y2O3/TREO |
|
|
Er2O3-1 |
0.005 |
0.05 |
0.005 |
0.005 |
0.005 |
0.005 |
|
|
Er2O3-2 |
0.005 |
0.01 |
0.001 |
0.001 |
0.005 |
0.01 |
|
|
Non-Rare Earth Impurities(≤ %) |
Atomic Absorption Spectrophotometer |
Spec/Item/Content |
Fe |
Ca |
Si |
Al |
Na |
Mg |
Cu |
Cl |
Burning Reduction |
Er2O3-1 |
0.005 |
0.01 |
0.01 |
0.005 |
0.005 |
0.002 |
0.002 |
0.02 |
1.0 |
Er2O3-2 |
0.0001 |
0.005 |
0.005 |
0.0005 |
0.0005 |
0.0002 |
0.0002 |
0.01 |
1.0 |
