Name |
Ytterbium(III) Oxide |
Molecular Formula |
Yb2O3 |
Molecular Weight |
394.08 |
Density |
9.17 g/cm3 |
Melting Point |
2355 °C |
Boiling Point |
4070 °C |
Solubility |
Insoluble in water |
Appearance |
White powder |
CAS Number |
1314-37-0 |
Storage |
Store in a dry place |

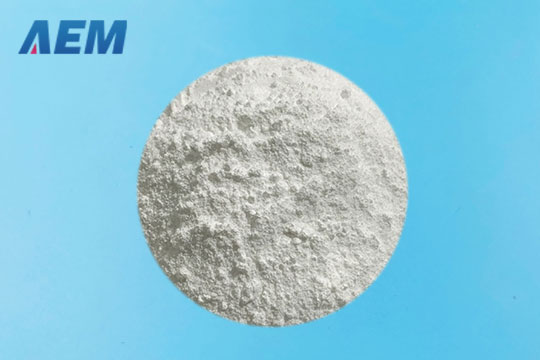

Ytterbium Oxide Powder
Ytterbium Oxide is a white powder that is not hazardous. It is mainly used to make colorant for glasses and ceramics, make laser materials, and is also used as an additive for the electronic computer memory element (magnetic bubble ). Moreover, Ytterbium Oxide is widely used in optical fibers.
Ytterbium Oxide also called Ytterbia, is being applied to numerous fiber amplifiers and fiber optic technologies. High purity Ytterbium Oxide Powder is widely used as a doping agent for garnet crystals in lasers, an essential colorant in glasses and porcelain enamel glazes. As Ytterbium Oxide has a significantly higher emissivity in the infrared range than Magnesium Oxide, the higher radiant intensity is obtained with Ytterbium-based payloads in comparison to those commonly based on Magnesium/Teflon/Viton (MTV).
Specialized in the Rare Earth area for many years, a wide range of quality products with competitive prices are available such as RE Polishing Powder, RE Oxides, RE Metals, RE Salts, RE Catalyst, RE Hydroxides, RE Magnetic Materials, and RE Special Materials. Our products are exported to Asia, EU, America, Middle East. All products are manufactured by advanced devices and follow international standards like ISO9000, ISO14000, and RoHS which can ensure purity. Finished products are only shipped after being passed the OQC department's strict inspection.
Ytterbium Oxide Powder Applications
Ytterbium oxide can be used to manufacture special alloy, optical fiber communication and laser technology, thermal shielding coating material, electronic material, active device material, battery material, biological medicine, etc.
Chemical Composition of Ytterbium Oxide Powder
Main Compositions ≥ % |
Analysis Instrument |
Specifications |
Yb2O3-1 |
Yb2O3-2 |
|
ICP Spectrometer |
TREO(wt%) |
99 |
99 |
Yb2O3/TREO |
99.9 |
99.99 |
Rare Earth Impurities (≤ %) |
Spec/Item/Content |
La2O3/TREO |
CeO2/TREO |
Pr6O11/TREO |
Nd2O3/TREO |
Sm2O3/TREO |
Eu2O3/TREO |
Gd2O3/TREO |
Tb4O7/TREO |
Yb2O3-1 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
Yb2O3-2 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
Spec/Item/Content |
Dy2O3/TREO |
Ho2O3/TREO |
Er2O3/TREO |
Tm2O3/TREO |
Tb2O3/TREO |
Lu2O3/TREO |
Y2O3/TREO |
|
Yb2O3-1 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
|
Yb2O3-2 |
0.001 |
0.001 |
0.001 |
0.002 |
0.001 |
0.002 |
0.002 |
|
Non-Rare Earth Impurities(≤ %) |
Atomic Absorption Spectrophotometer |
Spec/Item/Content |
Fe |
Ca |
Si |
Al |
Na |
Mg |
Cu |
Cl |
Burning Reduction |
Yb2O3-1 |
0.005 |
0.01 |
0.01 |
0.005 |
0.005 |
0.002 |
0.002 |
0.02 |
1.0 |
Yb2O3-2 |
0.0002 |
0.005 |
0.005 |
0.0005 |
0.0005 |
0.0002 |
0.0002 |
0.01 |
1.0 |
Packaging of Ytterbium Oxide Powder
Our Ytterbium Oxide (Yb2O3) is tagged and labeled externally to ensure efficient identification and quality control. We take great care to avoid any damage which may cause during storage or transportation.
